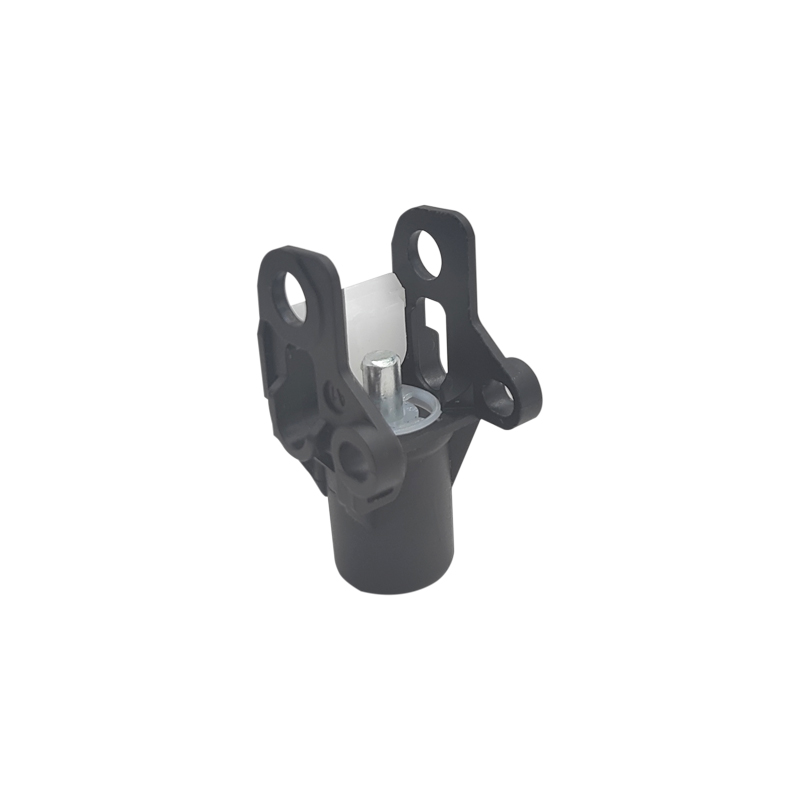

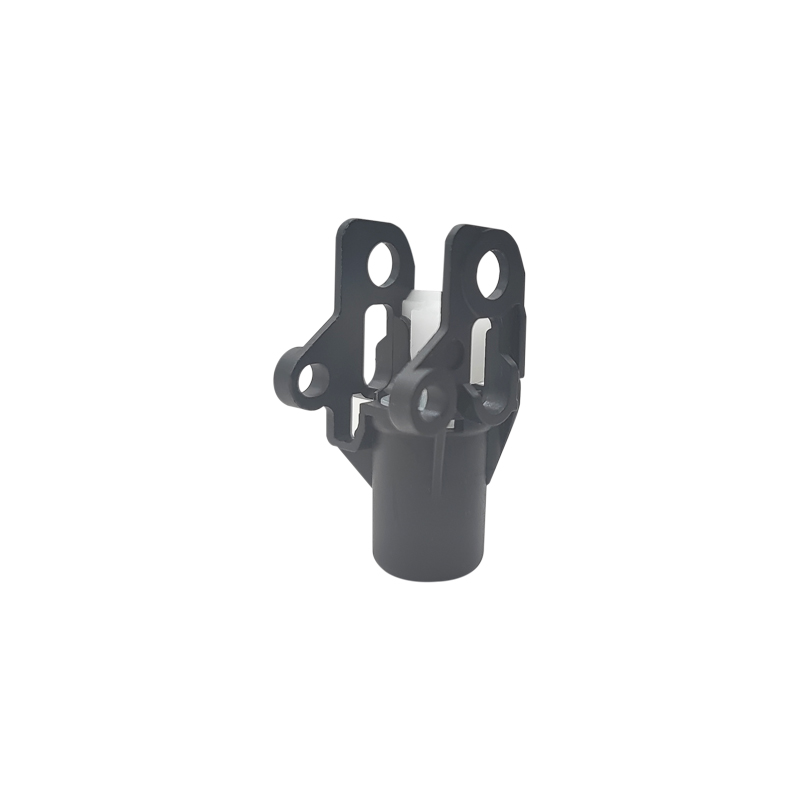

Hinger damper HCL-68
Hinge damping is installed on the hinge, and the reaction force of the damping can effectively control the opening and closing of cabinet doors, improving the safety of operation and eliminating abnormal sounds.
Made of shear resistant silicone oil and high-performance resin, the product has a service life of up to 100000 times, and the application case is Hettich's new hinge.
Product Details
Name: Hinge Damping HCL-68
Usage: Installed on the hinges of cabinet doors and windows, delaying the opening and closing operations of cabinet doors and windows, eliminating noise, and protecting items.

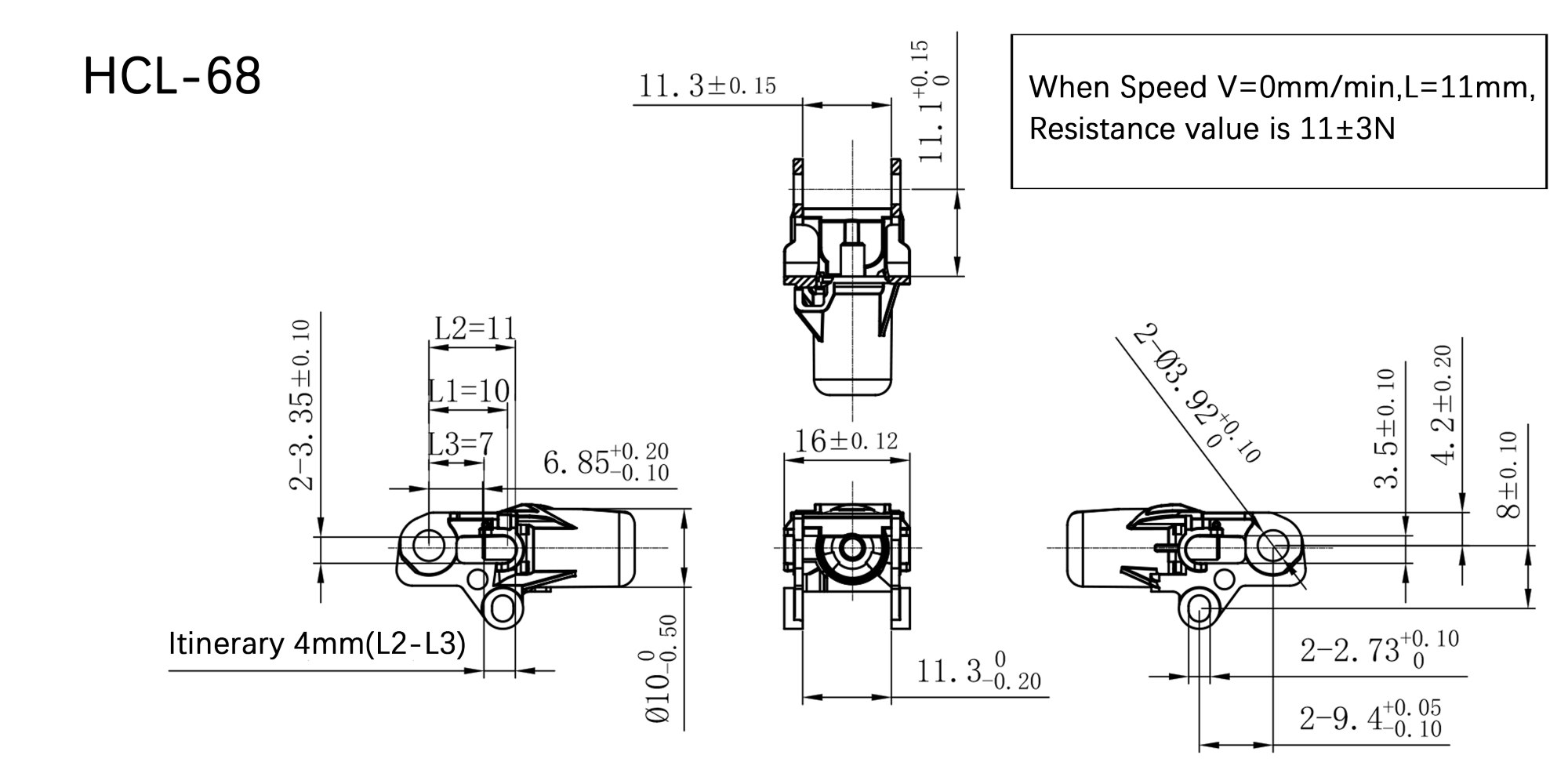

Dimensions: Drawing

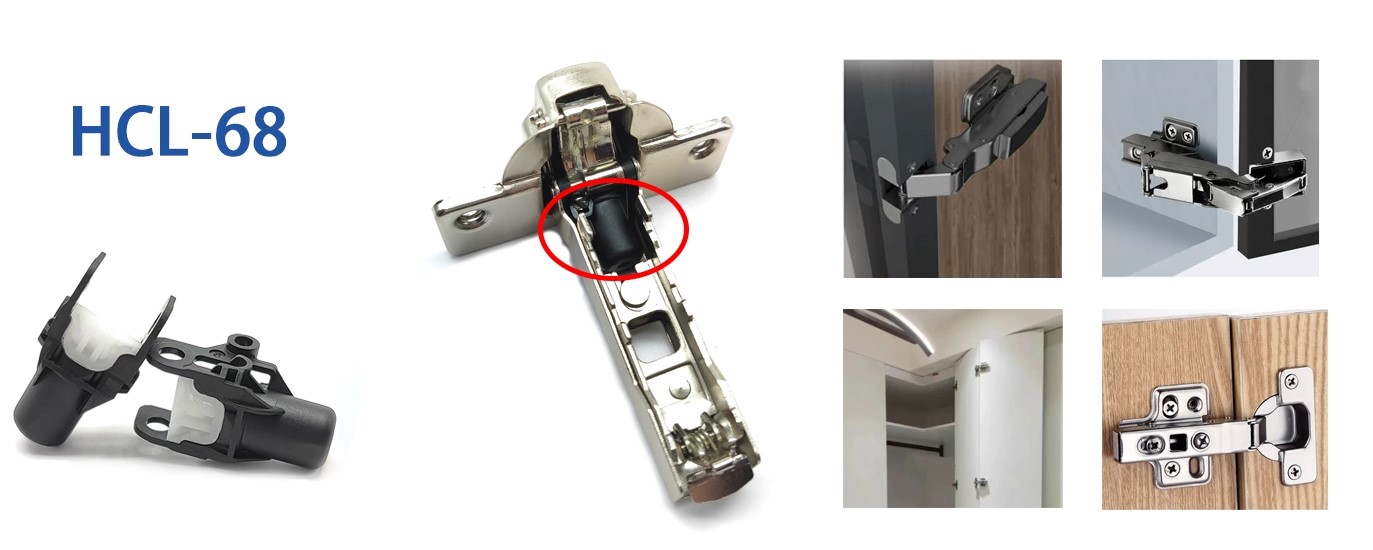

Installation position: as shown in the picture
